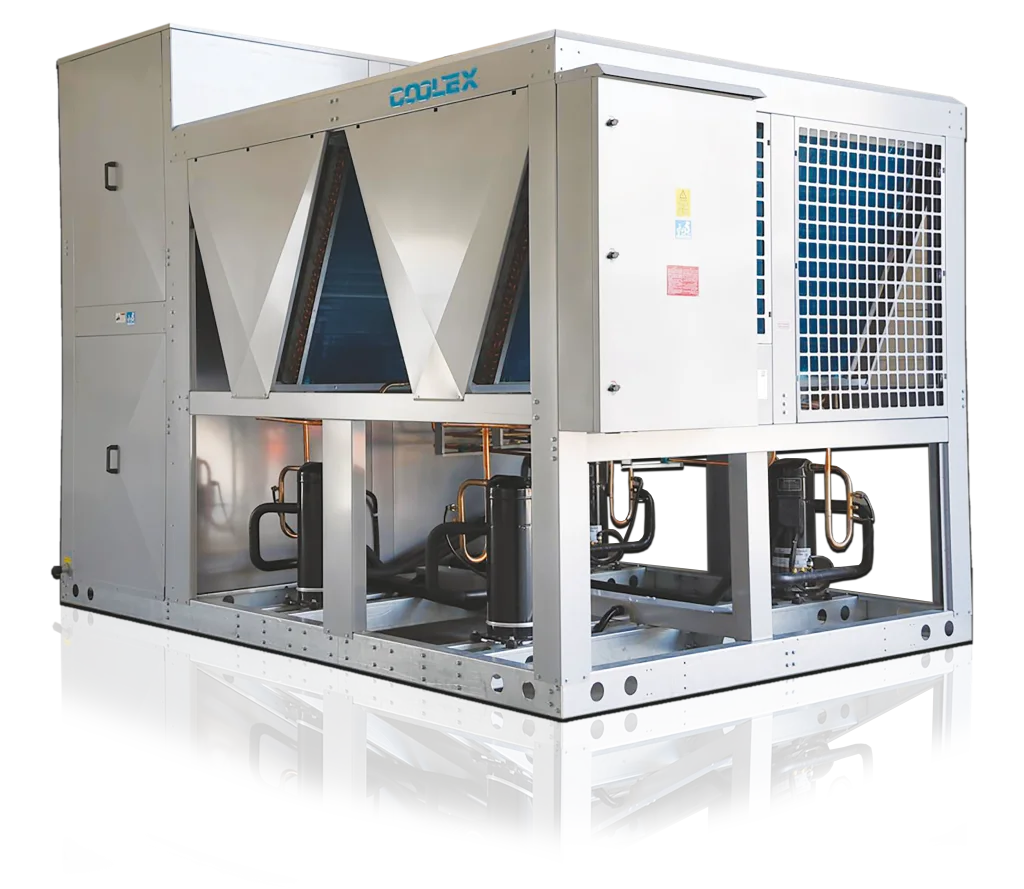

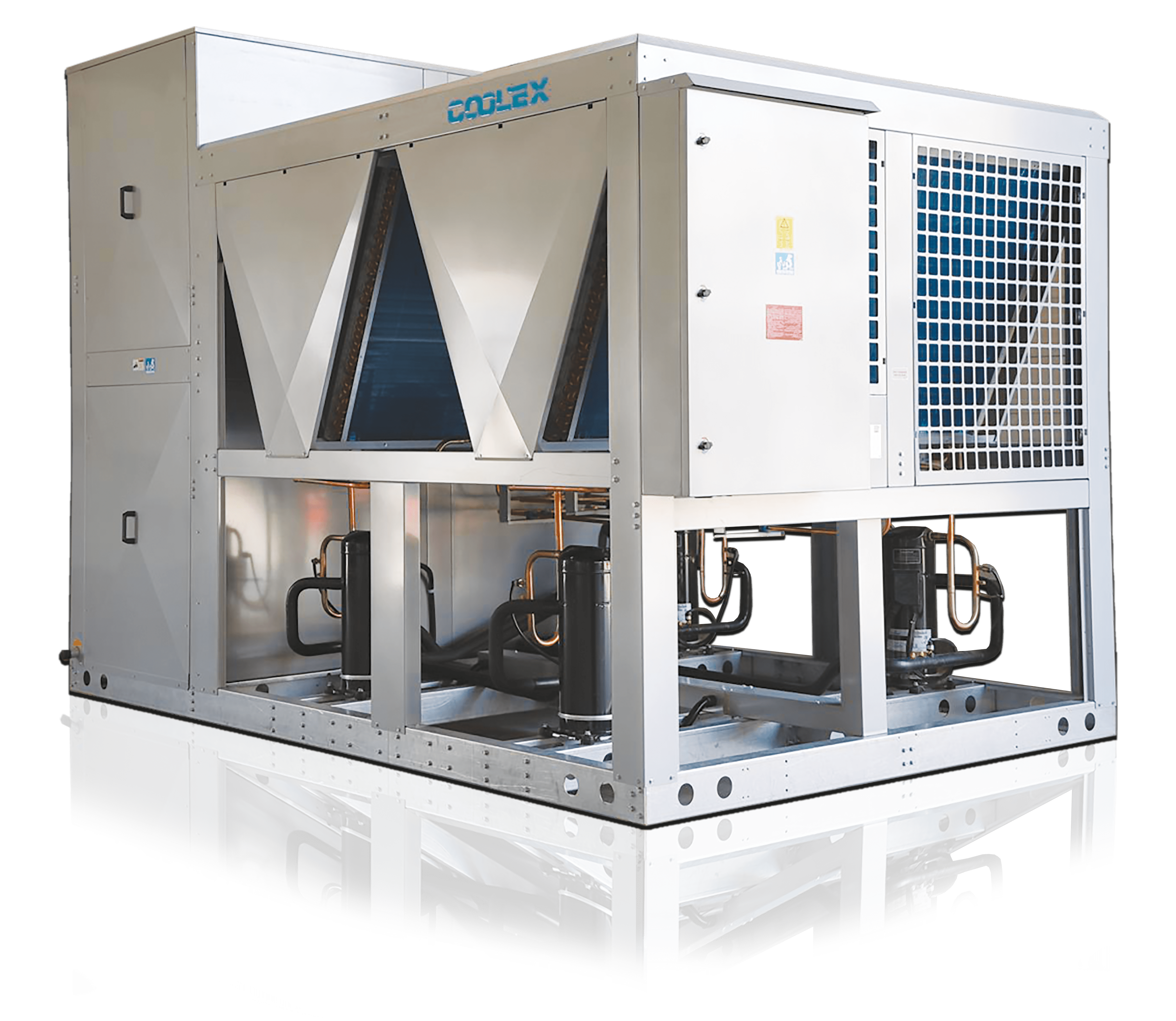

SPU Series Packaged Air Conditioners

The series of packaged air conditioning units have been designed and manufactured for commercial and industrial applications, offering optimal performance, high efficiency, reliability, ease of service and maintenance, and the ability to operate in harsh ambient conditions of up to 50°C.

Features

• Statically and dynamically balanced belt driven Centrifugal, DIDW Forward Curved fan, designed for low sound operation.
• Double skin units with 1" fiberglass insulation for a better indoor air quality.
• Painted electro-static powder coat, zinc coated steel panels provide additional protection against rust and discoloration in areas with high UV factor.
• Cooling coils are made of inner grooved copper tubes with mechanically bonded hydrophilic aluminum fins that provide optimum heat transfer.
• Standard factory installed thermostatic expansion vales (TXV).
• Motors are Totally Enclosed Fan Cooled (TEFC) type, IP55 Protected, 4 Pole Class F insulation conform to relevant IEC standards.
• Standard sloped drain pan with 8 mm polyethylene insulation.
• Low resistance aluminum washable filters having frontal access for removal.
• Easy panel removal of side panel allows access to serviceable components.
• Minimum of two refrigerant independent circuits which provide efficient part load operation
